weatherloc treated JBL BAR 300 Soundbar
weatherloc treated JBL BAR 300 Soundbar
Black
201 Wilcox Street, McKinney Texas 75069
201 Wilcox Street
McKinney TX 75069
United States

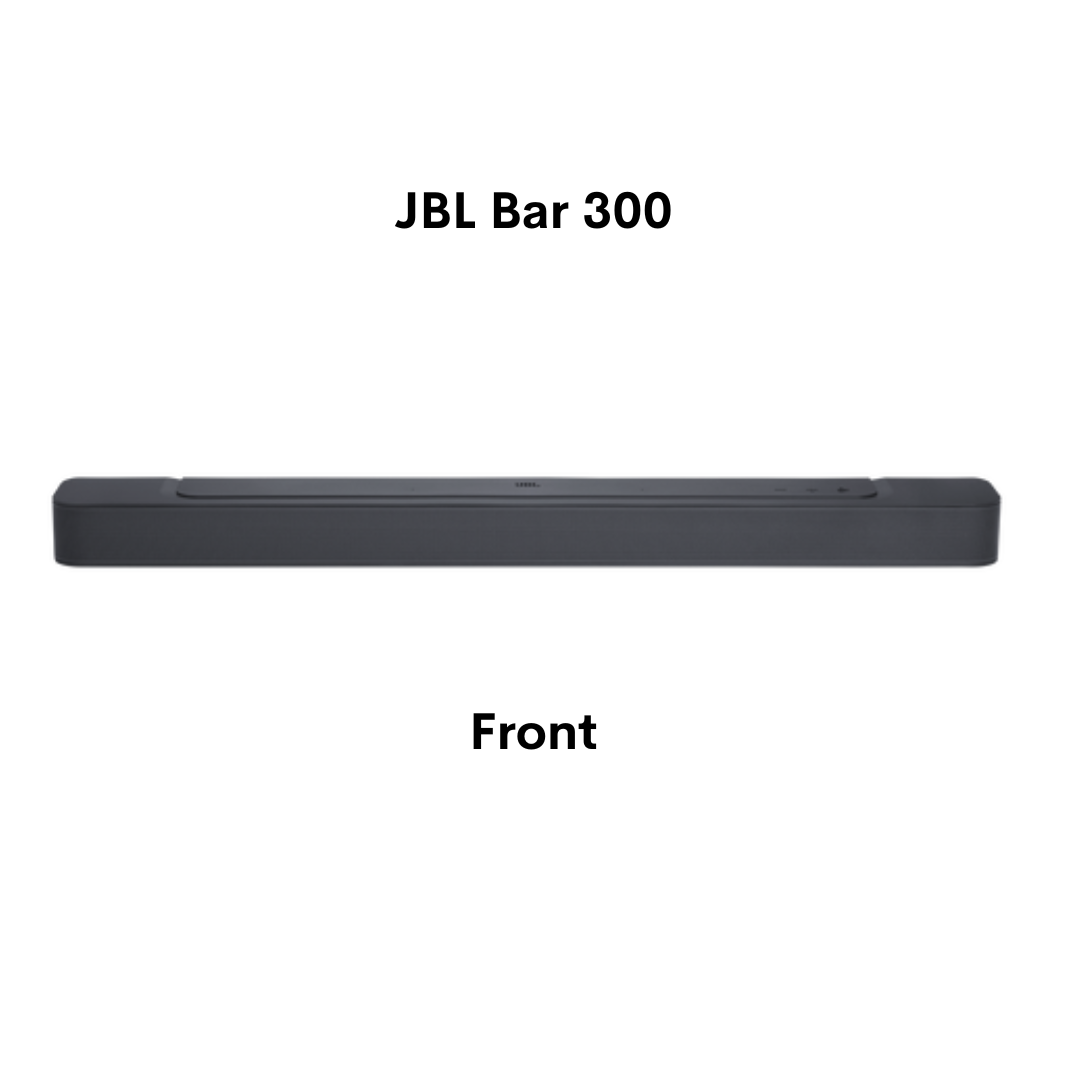

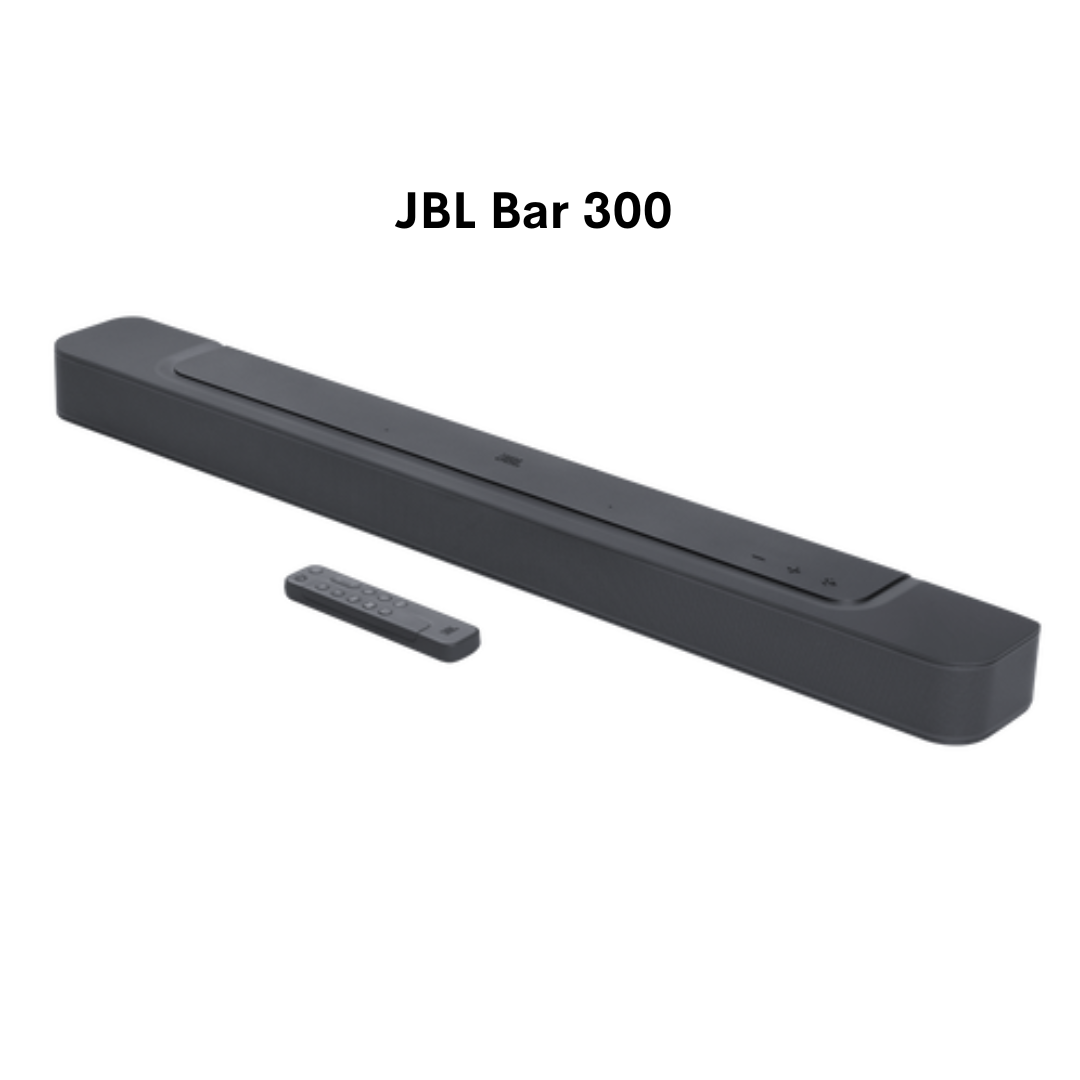

weatherloc® treated JBL BAR 300 Soundbar
Dolby Atmos® and MultiBeam™ Surround Sound
Immerse yourself in theater-quality 3D surround sound. Hear extraordinary sound effects from everywhere in the room, without the need for extra surround speakers
1 Year Warranty is included.
Product Features
260W output power
With 260 watts of total output power, the JBL Bar 300 transforms your movies, music and games into immersive sound experiences.
Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™
Get ready to explore. Access over 300 online music streaming services through AirPlay, Alexa MRM and Chromecast built-in™. Enjoy all of your favorite audio content, Internet radio, and podcasts in high definition. The Wi-Fi connection also allows automatic software updates, so you can always enjoy the latest features.

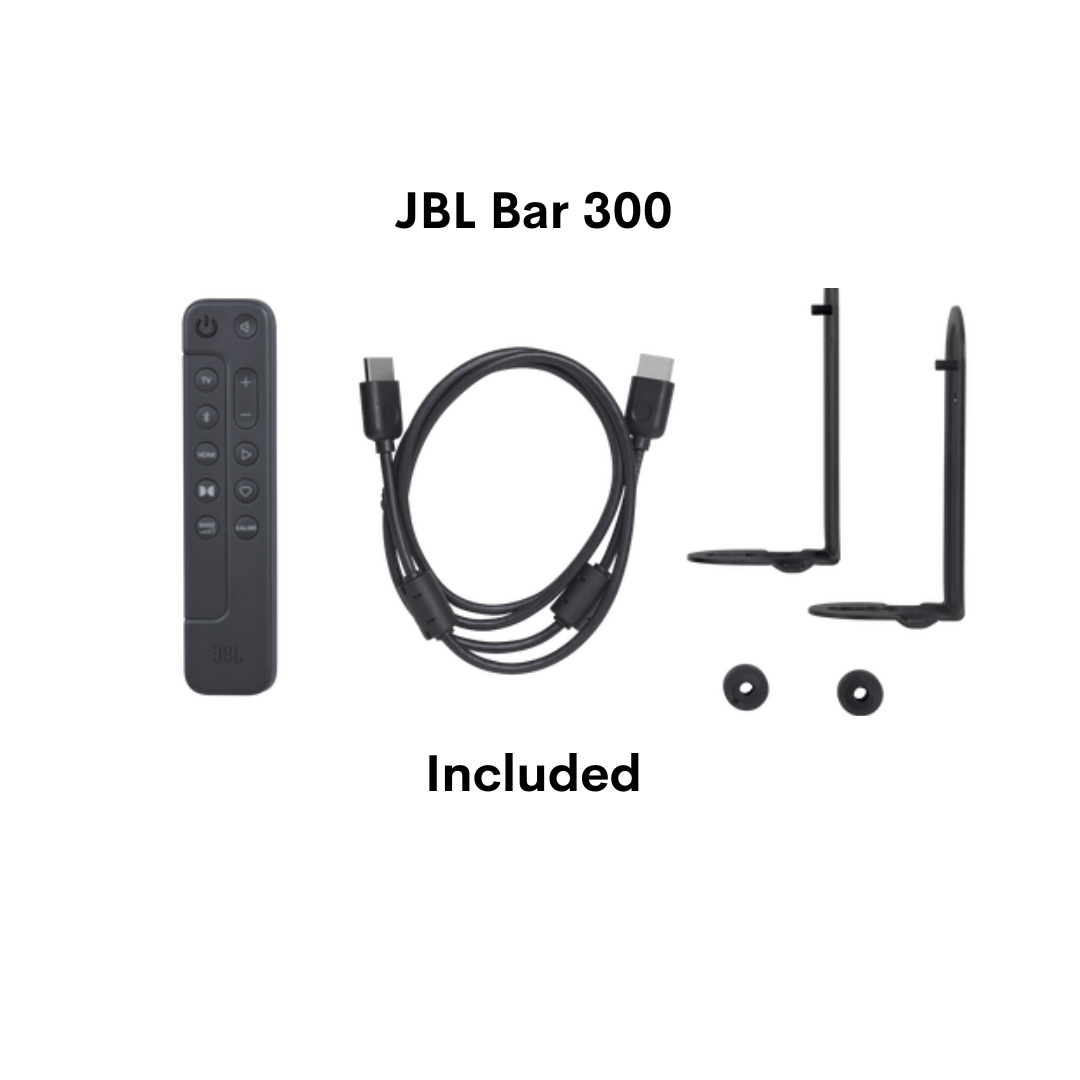

What's Included in the Box
Remote control with 2 x batteries
Power cords (up to 4pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket with screws
Quick start guide
Safety Instruction and Warranty Card
Wall mount template
Specs
General Specifications
Power supply
100 - 240V AC, ~ 50/60Hz
Networked standby power
< 2.0 W
Operating temperature
0°C - 45 °C
Audio Specifications
Total speaker power output (Max @THD 1%)
260W
Soundbar transducer
4x (46x90)mm racetrack drivers, 2x 0.75" (20mm) tweeters
Frequency response
50Hz - 20kHz (-6dB)

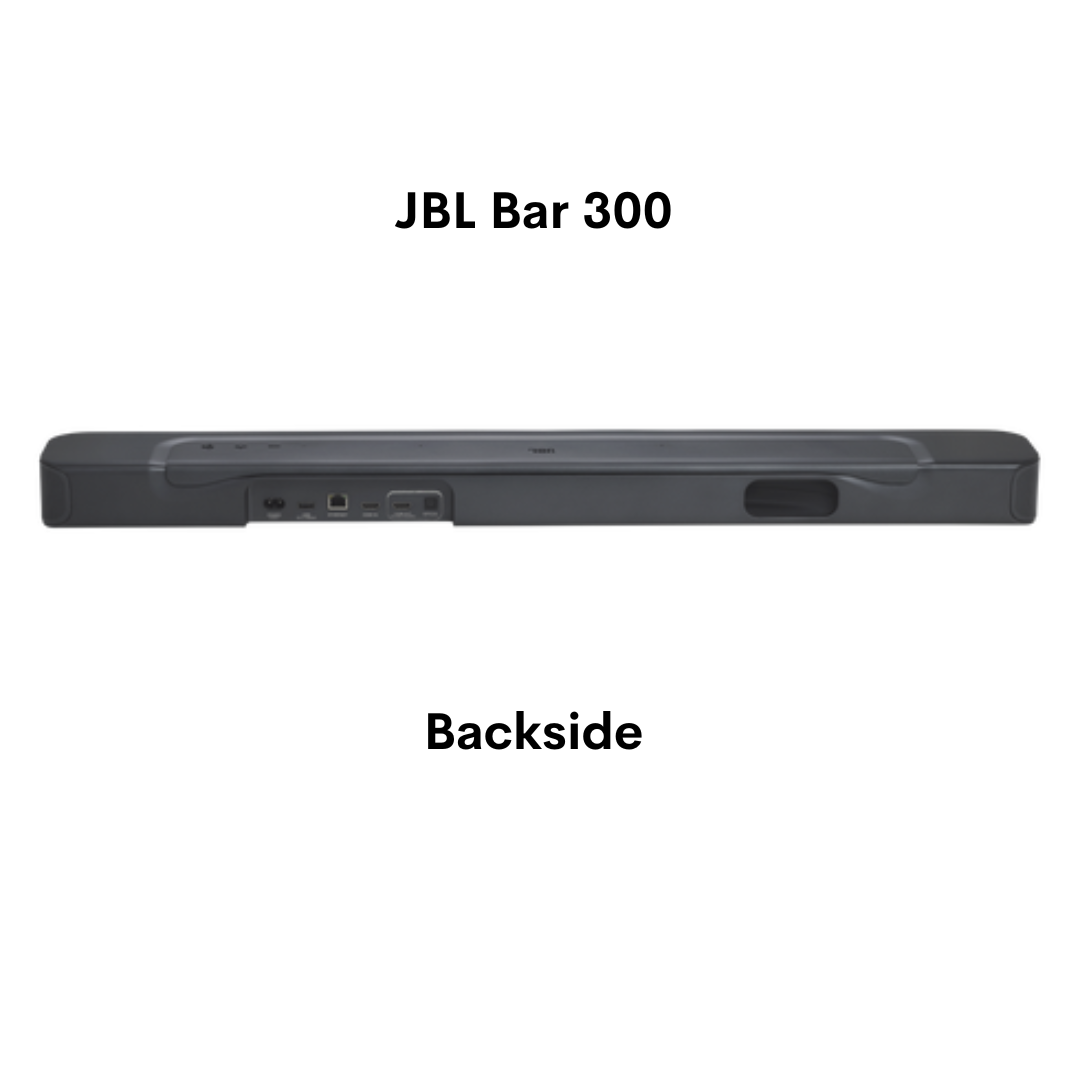

Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
Dimensions
Soundbar dimensions (W x H x D)
820 x 56 x 103.5 mm / 32.3’’ x 2.2’’ x 4.1’’
Soundbar weight
2.5kg/5.5 lbs
Packaging dimensions (W x H x D)
1060 x 120 x 170 mm/ 41.7" x 4.7" x 6.7"
Packaging Weight
4.1 kg / 9 lbs
Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file format
MP3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 - 48 kHz
MP3 bitrate
80 - 320 kpbs
Bluetooth version
5.0
Bluetooth profile
A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range
2400 MHz – 2483.5 MHz
Bluetooth transmitter power
<15 dBm (EIRP)
Wi-Fi network
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power
< 20 dBm (EIRP)
5G Wi-Fi transmitter frequency range
5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz
5G Wi-Fi transmitter power
5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
Video Specifications
HDMI video input
1
HDMI video output (with Enhanced Audio Return Channel, eARC)
1
HDMI HDCP version
2.3
HDR pass through
HDR10, Dolby Vision
